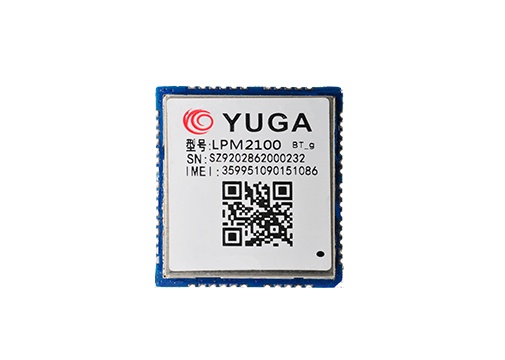

LPM2100 bt

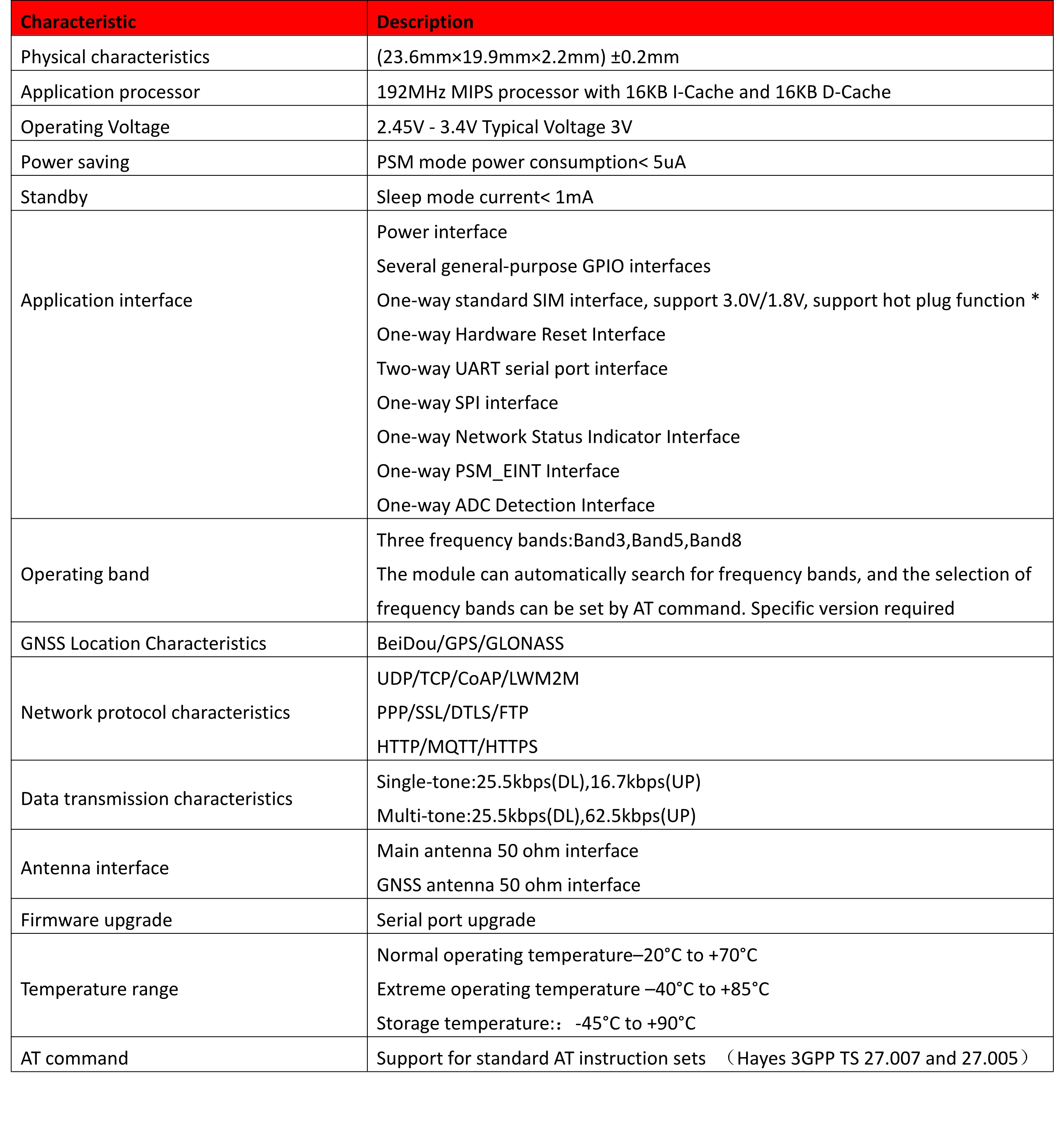

The LPM2100 bt is a multi-band NB-IoT module. The bt module supports the B3, B5, and B8 bands. It is mainly used for low-power data transmission services and GNSS positioning to meet the 3GPP Release 13 standard. The module has a total of 98 pins. At the same time, it has an ultra-small size of (23.6±0.15) mm × (19.9±0.15) mm × (2.2±0.2)mm, which can meet almost all M2M requirements.

Hotline:

+86 021-50177336

     Manual Download
      LPM2100 bt NB-IoT Module Hardware Usage Guide
      LPM2100 bt_SPEC
      RDA LPM2100 AT command manual
     open CPU tools Download
      cooltools-win32_custom
      CSDTK4.2_20180111
      msys2-x86_64
      RDA_dnloader_V11.01.06
      rda8908_sdk_20191021
      The_RDA_SDK_uses_tutorials_en
      Module_function_pin_mapping_table

     Driver Download
      CH341SER
      CP210x_Windows_Drivers
      FT232_Setup
      PL2303_Prolific_DriverInstaller_v130
